| General moped information |
|---|

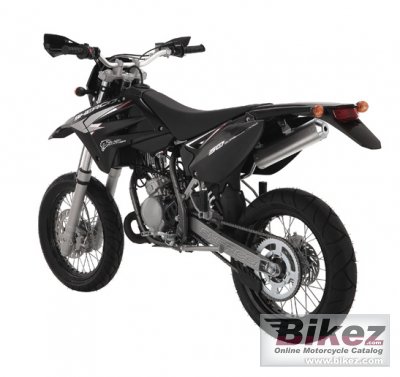

| Model: | Sherco SM 0.5 Black Panther |
| Year: | 2009 |
| Category: | Enduro / offroad |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.70 ccm (3.03 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Bore x stroke: | 40.3 x 39.0 mm (1.6 x 1.5 inches) |
| Fuel system: | Carburettor |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet, multidisc |
| Exhaust system: | Steel exhaust system with aluminum silencer |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Chrome-molybdenum tubing main frame with a removable sub-frame |
| Front suspension: | Paioli 41mm dia hydraulic telescopic fork |
| Rear suspension: | Olle single shock absorber, adjustable spring preload |
| Front tyre: | 2.50-17 |
| Rear tyre: | 3.50-17 |
| Front brakes: | Single disc. AJP |
| Front brakes diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc. AJP |
| Rear brakes diameter: | 180 mm (7.1 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 83.0 kg (183.0 pounds) |
| Seat height: | 850 mm (33.5 inches) If adjustable, lowest setting. |
| Ground clearance: | 260 mm (10.2 inches) |
| Wheelbase: | 1,360 mm (53.5 inches) |
| Fuel capacity: | 7.00 litres (1.85 gallons) |
| Other specifications |
|---|
| Color options: | Black |
| Starter: | Kick |
| Comments: | Minarelli AM6 engine. |
