| Sherco's profilation of this bike |
| New Rear sub frame with improved attachment point for the silencer.New fuel injection mapping which allows better engine response and provides reduced engine braking. |
|
General information |
|
Model name
|

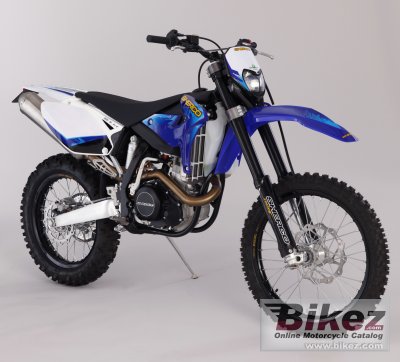

Sherco SE 5.1i-F |
|
Year model
|
2010 |
|
Type
|
Enduro / offroad |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
510.0 ccm (31.12 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Bore x stroke
|
95.0 x 72.0 mm (3.7 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Exhaust system
|
Stainless steel header pipe and muffler with catalytic converter meets Euro 3 stds. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Simple Chrome-Molybdenum and aluminium double cradle design |
|
Front suspension
|
Ceriani telescopic fork, Ø46 mm tubes rebound and compression adjustable |
|
Rear suspension
|
Sachs progressive, multiadjustable rear shock utilizing a linkage and rod system |
|
Front tire
|
1.60-21 |
|
Rear tire
|
2.15-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
270 mm (10.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
109.0 kg (240.3 pounds) |
|
Seat height
|
900 mm (35.4 inches) If adjustable, lowest setting. |
|
Ground clearance
|
325 mm (12.8 inches) |
|
Fuel capacity
|
8.50 litres (2.25 US gallons) |
|
Other specifications |
|
Color options
|
Blue/white/black |
|
Starter
|
Electric & kick |
