| Sherco's profilation of this bike |
| The 2012 Sherco is the result of a careful redesign which has produced an extremely compact machine with very natural ergonomics. The new frame provides a machine that is more manageable and provides increased riding pleasure, it is also incredibly effective in races where the rider is racing against the clock. |
|
General information |
|
Model name
|

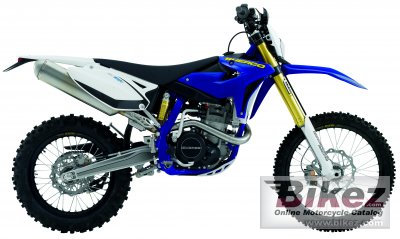

Sherco SE 510i Racing |
|
Year model
|
2012 |
|
Type
|
Enduro / offroad |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
510.4 ccm (31.14 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Bore x stroke
|
95.0 x 72.0 mm (3.7 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Magnetti Marelli digital electronic fuel injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Hydraulic, multidisc in oil bath |
|
Emission details
|
Euro 3 |
|
Exhaust system
|
Stainless steel header pipe and muffler |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle Chrome-Molybdenum design |
|
Front suspension
|
Sachs ´GOLD´ telescopic fork, Ø 48 mm tubes rebound and compression adjustable |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
Sachs ´OR´ progressive, multiadjustable rear shock utilizing a linkage and rod system |
|
Rear wheel travel
|
320 mm (12.6 inches) |
|
Front tire
|
1.60-21 |
|
Rear tire
|
2.15-18 |
|
Front brakes
|
Single disc. Bremo |
|
Diameter
|
270 mm (10.6 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
240 mm (9.4 inches) |
|
Wheels
|
Aluminum rim, steel spokes and Michelin Enduro Competition tube type |
|
Physical measures and capacities |
|
Dry weight
|
109.0 kg (240.3 pounds) |
|
Weight incl. oil, gas, etc
|
119.0 kg (262.4 pounds) |
|
Seat height
|
920 mm (36.2 inches) If adjustable, lowest setting. |
|
Ground clearance
|
385 mm (15.2 inches) |
|
Wheelbase
|
1485 mm (58.5 inches) |
|
Fuel capacity
|
8.50 litres (2.25 US gallons) |
|
Other specifications |
|
Color options
|
Blue/white/gold |
|
Starter
|
Electric |
|
Electrical
|
12 V 7Ah battry. Ducati Energia alternator 180 W. |
