| Sherco's profilation of this bike |
| All the characteristics and improvements of the 2006 4.5i are also found in the ´big´ Sherco. The 5.1i has a cylinder displacement of 510 cc; the only changes to the engine from the 4.51 are in the bore and the stroke. This required a new cylinder, piston, connecting rod and crankshaft.
|
|
General information |
|
Motorcycle name
|

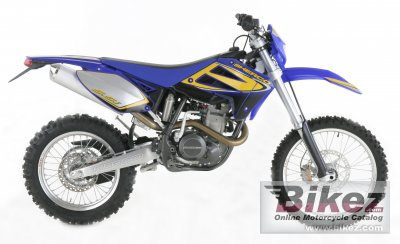

Sherco 5.1i Enduro |
|
Year model
|
2006 |
|
Type
|
Enduro / offroad |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
510.4 ccm (31.14 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Bore x stroke
|
95.0 x 72.0 mm (3.7 x 2.8 inches) |
|
Fuel system
|
Carburettor. Mikuni |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Hydraulic, multidisc in oil bath |
|
Exhaust system
|
Stainless Steel pipe with single aluminium muffler |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Built from Chrome-molybdenum forming a single structure. |
|
Front suspension
|
Paioli 38mm dia hydraulic telescope fork, 185mm travel, fully adjustable for preload and dampening. |
|
Rear suspension
|
Progressive link system with single Ollé |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
109.0 kg (240.3 pounds) |
|
Seat height
|
900 mm (35.4 inches) If adjustable, lowest setting. |
|
Ground clearance
|
350 mm (13.8 inches) |
|
Wheelbase
|
1485 mm (58.5 inches) |
|
Fuel capacity
|
8.50 litres (2.25 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
