| Sherco's profilation of this bike |
| The end result is a motorcycle with a stronger frame, higher quality components, totally new appearance, improved engine management and the ability to choose ignition operating curves. |
|
General information |
|
Motorcycle name
|

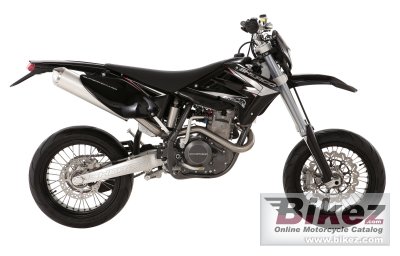

Sherco 5.1 4T Supermotard |
|
Year of manufacture
|
2008 |
|
Type
|
Super motard |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
510.4 ccm (31.14 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Bore x stroke
|
95.0 x 72.0 mm (3.7 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic fuel injection/digital engine management: Magneti Marelli |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Hydraulic, multidisc in oil bath |
|
Exhaust system
|
Stainless steel pipe with aluminium silencer |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Built from Chrome-Molybdenum forming a single structure |
|
Front suspension
|
Paioli/Kayaba telescopic fork. Forward offset wheel axle and brake calliper. Travel 295 mm |
|
Rear suspension
|
Progressive system with single Paioli absorber with aluminium structure and fully adjustable (four regulation types), linked to the centre of the chassis and pushed by the swing arm through an articulated rod system: Travel: 295 mm |
|
Front brakes
|
Single disc. Bremo |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
109.0 kg (240.3 pounds) |
|
Ground clearance
|
325 mm (12.8 inches) |
|
Wheelbase
|
1485 mm (58.5 inches) |
|
Fuel capacity
|
8.50 litres (2.25 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
