| Scorpa's profilation of this bike |
| Using the latest technology as the aeronautical15CDV6 steel frame and the latest DELLORTO pump jet carburator, this bike proves itself to be the leader of it´s category. |
|
General information |
|
Model name
|

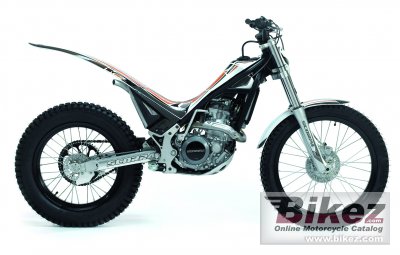

Scorpa SY-250FR |
|
Year of manufacture
|
2010 |
|
Type
|
Trial |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
249.0 ccm (15.19 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
10.6:1 |
|
Bore x stroke
|
77.0 x 53.6 mm (3.0 x 2.1 inches) |
|
Fuel system
|
Carburettor. VHST 26 mm DELLORTO, with resumption pump |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Computer-controlled Digital Ignition |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multidisc, with hydraulic command |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Perimetric, mixed: 15CDV6 Steel pipes and 6082 forged Aluminium decks |
|
Front suspension
|
MARZOCCHI Aluminium 40 mm hydraulic fork, adjustable compression and rebond damping, 177 mm axle travel |
|
Rear suspension
|
SACHS adjustable hydraulic single damper, 165 mm wheel travel |
|
Front tire
|
1.60-21 |
|
Rear tire
|
2.15-18 |
|
Front brakes
|
Single disc. Wave |
|
Diameter
|
182 mm (7.2 inches) |
|
Rear brakes
|
Single disc. Wave |
|
Diameter
|
150 mm (5.9 inches) |
|
Physical measures and capacities |
|
Dry weight
|
75.0 kg (165.3 pounds) |
|
Seat height
|
665 mm (26.2 inches) If adjustable, lowest setting. |
|
Overall height
|
1130 mm (44.5 inches) |
|
Overall length
|
2023 mm (79.6 inches) |
|
Overall width
|
840 mm (33.1 inches) |
|
Ground clearance
|
315 mm (12.4 inches) |
|
Wheelbase
|
1330 mm (52.4 inches) |
|
Fuel capacity
|
2.00 litres (0.53 US gallons) |
|
Other specifications |
|
Color options
|
Black/white/red |
|
Starter
|
Kick |
|
Comments
|
Yamaha engine |
