General information |
|
Motorcycle name
|

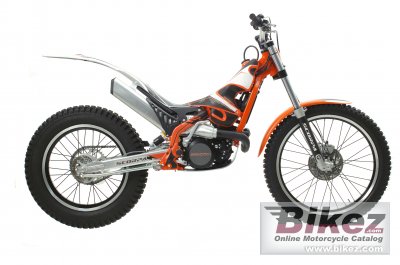

Scorpa SR 125 |
|
Year
|
2012 |
|
Category
|
Trial |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
124.7 ccm (7.61 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Bore x stroke
|
56.0 x 50.7 mm (2.2 x 2.0 inches) |
|
Fuel system
|
Carburettor. Dell´Orto PHBL 26BL |
|
Ignition
|
CDI |
|
Lubrication system
|
2% mixture |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multiplate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular Steel |
|
Front suspension
|
Marzocchi 40 mm hydraulic fork |
|
Front wheel travel
|
177 mm (7.0 inches) |
|
Rear suspension
|
SACHS adjustable hydraulic monoshock |
|
Rear wheel travel
|
165 mm (6.5 inches) |
|
Front tire
|
1.60-21 |
|
Rear tire
|
2.15-18 |
|
Front brakes
|
Single disc. Floating Wave disk with AJP 4-piston calipers |
|
Diameter
|
182 mm (7.2 inches) |
|
Rear brakes
|
Single disc. Floating Wave disk with AJP 2-piston calipers |
|
Diameter
|
150 mm (5.9 inches) |
|
Wheels
|
Black rims |
|
Physical measures and capacities |
|
Dry weight
|
69.0 kg (152.1 pounds) |
|
Seat height
|
699 mm (27.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2050 mm (80.7 inches) |
|
Ground clearance
|
295 mm (11.6 inches) |
|
Wheelbase
|
1345 mm (53.0 inches) |
|
Fuel capacity
|
2.60 litres (0.69 US gallons) |
|
Oil capacity
|
1.00 litres (1.06 US quarts) |
|
Other specifications |
|
Color options
|
Orange/gray/white |
|
Starter
|
Kick |
|
Light
|
No lights |
