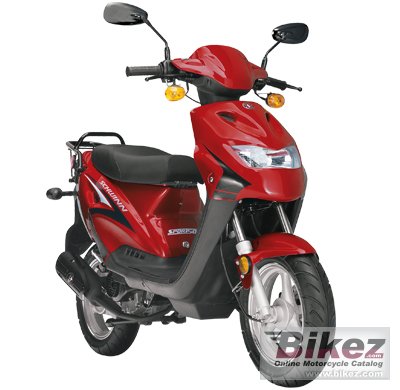

| Schwinn's profilation of this bike |
| The 12´ wheels and hydraulic front shocks that keep you comfortable on the pock-marked backstreets of the warehouse district. Front disc brake that promises 4-star delivery van avoidance. Fast-reading instrument panel. |
|
General moped information |
|
Model name
|
Schwinn Sport 50 |
|
Model year
|
2012 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
49.5 ccm (3.02 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Driveline
|
CVT automatic |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tube |
|
Front suspension
|
30mm stanchion/Telescopic |
|
Rear suspension
|
Damping Shock |
|
Front tire
|
120/70-12 |
|
Rear tire
|
120/70-12 |
|
Front brakes
|
Single disc. Cross-drilled Disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Wheels
|
Alloy rims |
|
Physical measures and capacities |
|
Dry weight
|
90.0 kg (198.4 pounds) |
|
Weight incl. oil, gas, etc
|
96.0 kg (211.6 pounds) |
|
Overall height
|
1140 mm (44.9 inches) |
|
Overall length
|
1850 mm (72.8 inches) |
|
Fuel capacity
|
5.41 litres (1.43 US gallons) |
|
Other specifications |
|
Color options
|
Red, black |
|
Starter
|
Electric & kick |
|
Factory warranty
|
1 year warranty |
