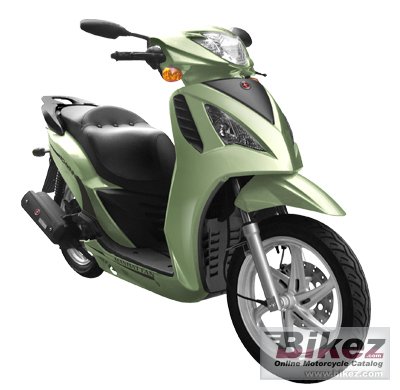

| Schwinn's profilation of this bike |
| From 16´ wheels to it´s sleek styling, this big city ride was made for an urban environment. The Manhattan provides a phenomenal look and ergonomic comfort when cruising around Main St. |
|
General information |
|
Motorcycle name
|
Schwinn Manhatten 200 |
|
Model year
|
2012 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
177.3 ccm (10.82 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Driveline
|
CVT Automatic |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
30mm stanchion/Telescopic |
|
Rear suspension
|
Swing-Arm with Dual Adjustable Coil-Over Shocks |
|
Front brakes
|
Double disc. Hydraulic |
|
Rear brakes
|
Expanding brake (drum brake). Hydraulic |
|
Physical measures and capacities |
|
Dry weight
|
135.2 kg (298.0 pounds) |
|
Fuel capacity
|
6.50 litres (1.72 US gallons) |
|
Other specifications |
|
Color options
|
Green, charcoal |
|
Starter
|
Electric & kick |
|
Factory warranty
|
4 Year Limited Warranty |
