Schwinn's profilation of this bike |
With the new 2012 Laguna 50, we´ve built in all the modern features: telescopic front suspension, front disc brake, handlebar directional headlight, and a smooth 4-stroke 49.5cc motor. All backed by our outstanding Extended Warranty, the 2012 Laguna 50 takes to the road with passion and comfort. |
General moped information |
Motorcycle name
|

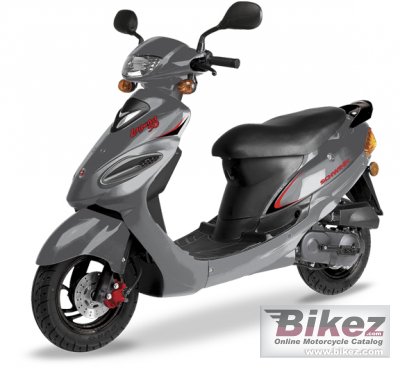

Schwinn Laguna 50 |
Year
|
2012 |
Category
|
Scooter |
Rating
|
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
Engine and transmission |
Displacement
|
49.5 ccm (3.02 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Fuel system
|
Carburettor |
Cooling system
|
Air |
Gearbox
|
Automatic |
Transmission type
|
Belt (final drive) |
Driveline
|
CVT |
Chassis, suspension, brakes and wheels |
Frame type
|
Steel |
Front suspension
|
Telescopic |
Rear suspension
|
Swing-Arm with Dual Adjustable Coil-Over Shocks |
Front tire
|
CST3.50-10 |
Rear tire
|
CST3.50-10 |
Front brakes
|
Single disc. Hydraulic |
Rear brakes
|
Expanding brake (drum brake) |
Wheels
|
Alloy rims |
Physical measures and capacities |
Dry weight
|
87.1 kg (192.0 pounds) |
Overall length
|
1737 mm (68.4 inches) |
Overall width
|
632 mm (24.9 inches) |
Fuel capacity
|
3.97 litres (1.05 US gallons) |
Other specifications |
Color options
|
Red, charcoal |
Starter
|
Electric & kick |
Factory warranty
|
4 Year Limited Warranty |
