Schwinn Laguna 50 20112011 Schwinn Laguna 50 specifications, pictures, reviews and rating |

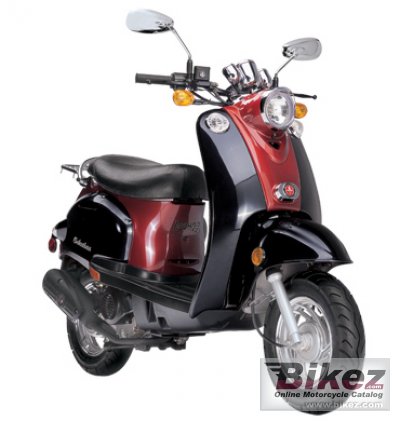

 2011 Schwinn Laguna 50. Picture credits - Schwinn. Submit more pictures. |
| Schwinn's profilation of this bike |
| With the Laguna we’ve built in all the modern features other scoots only dream of: hydraulic front suspension, front disc brake, lightweight alloy wheels, and a smooth 4-stroke 49.5cc motor. |
| General moped information | |
|---|---|
| Model | Schwinn Laguna 50 |
| Year of manufacture | 2011 |
| Type | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 49.5 ccm (3.02 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Fuel system | Carburettor |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | 26mm stanchion/Telescopic |
| Rear suspension | Damping Shock |
| Front tire | CST3.50-10 |
| Rear tire | CST3.50-10 |
| Front brakes | Single disc. Cross-drilled Disc |
| Rear brakes | Expanding brake (drum brake) |
| Wheels | Alloy rims |
| Physical measures and capacities | |
| Dry weight | 162.0 kg (357.1 pounds) |
| Overall length | 1737 mm (68.4 inches) |
| Overall width | 632 mm (24.9 inches) |
| Fuel capacity | 3.97 litres (1.05 US gallons) |
| Other specifications | |
| Color options | Red/white, black/cherry ink |
| Starter | Electric & kick |
| Factory warranty | 1 year parts and labor |
