Schwinn Laguna 50 20102010 Schwinn Laguna 50 specifications, pictures, reviews and rating |

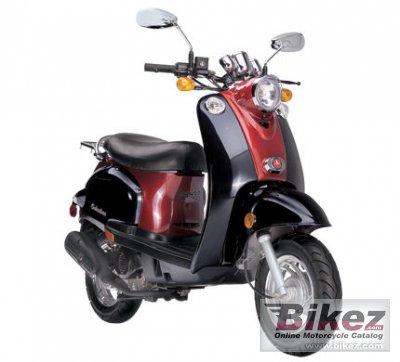

 2010 Schwinn Laguna 50. Picture credits - Schwinn. Submit more pictures. |
| Schwinn's profilation of this bike |
| Link front suspension? Front drum brakes? Steel wheels? Not on a Schwinn. Hey, it’s retro style you want, not retro construction |
| General moped information | |
|---|---|
| Model | Schwinn Laguna 50 |
| Year of manufacture | 2010 |
| Type | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 49.5 ccm (3.02 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Fuel system | Carburettor |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | 26mm stanchion/Telescopic |
| Rear suspension | Damping Shock |
| Front tire | CST3.50-10 |
| Rear tire | CST3.50-10 |
| Front brakes | Single disc. Cross-drilled Disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 162.0 kg (357.1 pounds) |
| Overall length | 1737 mm (68.4 inches) |
| Overall width | 632 mm (24.9 inches) |
| Fuel capacity | 3.97 litres (1.05 US gallons) |
| Other specifications | |
| Color options | Red, white, burgundy |
| Starter | Electric & kick |
| Update specs | Report missing specs or required updates. |
