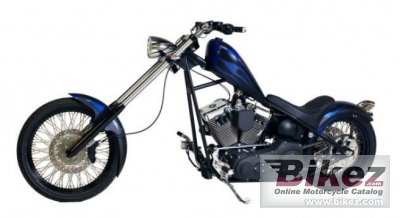

| Saxon's profilation of this bike |
| It´s 1970 again and this wicked chopper sports all the modern luxuries with yesterday´s style and cost. |
|
General information |
|
Model name
|
Saxon Whip |
|
Year model
|
2012 |
|
Type
|
Custom / cruiser |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
1573.0 ccm (95.98 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
OHV 45 degree V-twin |
|
Compression
|
10.1:1 |
|
Bore x stroke
|
94.0 x 116.8 mm (3.7 x 4.6 inches) |
|
Fuel system
|
Carburettor. S and S Super E Carburetor |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Driveline
|
6-speed right side drive. Primary drive is chain. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Stretch 6 inch Downtube, 2 inch Backbone |
|
Rake (fork angle)
|
45.0° |
|
Front suspension
|
41 mm Telescopic 11 inch Over |
|
Front tire
|
90/90-21 |
|
Rear tire
|
200-18 |
|
Front brakes
|
Single disc. Bremo 4-piston calipers |
|
Rear brakes
|
Single disc. Bremo 2- piston calipers |
|
Wheels
|
80 Spoke Wheels |
|
Physical measures and capacities |
|
Dry weight
|
195.0 kg (430.0 pounds) |
|
Seat height
|
660 mm (26.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2692 mm (106.0 inches) |
|
Wheelbase
|
2032 mm (80.0 inches) |
|
Fuel capacity
|
13.24 litres (3.50 US gallons) |
|
Oil capacity
|
2.80 litres (2.96 US quarts) |
|
Other specifications |
|
Starter
|
Electric |
|
Instruments
|
Digital with integrated tach |
|
Electrical
|
32 Amps Charging Output |
|
Factory warranty
|
24 months factory warranty |
