General information |
|
Motorcycle name
|

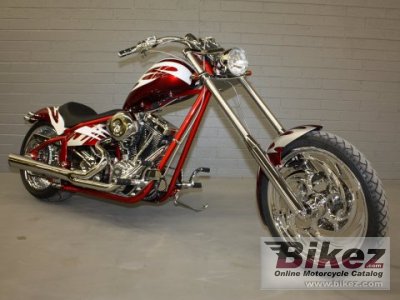

Saxon Warlord |
|
Model year
|
2009 |
|
Category
|
Custom / cruiser |
|
Rating
|
2.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1573.0 ccm (95.98 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Compression
|
10.1:1 |
|
Bore x stroke
|
94.0 x 119.4 mm (3.7 x 4.7 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Stretch: 6 In Downtube, 2 In Backbone |
|
Rake (fork angle)
|
45.0° |
|
Front suspension
|
41mm Telescopic 11 In Over |
|
Rear suspension
|
Hidden shocks |
|
Front tire
|
90/90-21 |
|
Rear tire
|
260/60-18 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
285.3 kg (629.0 pounds) |
|
Seat height
|
533 mm (21.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2743 mm (108.0 inches) |
|
Wheelbase
|
2108 mm (83.0 inches) |
|
Fuel capacity
|
17.03 litres (4.50 US gallons) |
|
Oil capacity
|
3.30 litres (3.49 US quarts) |
|
Other specifications |
|
Starter
|
Electric |
