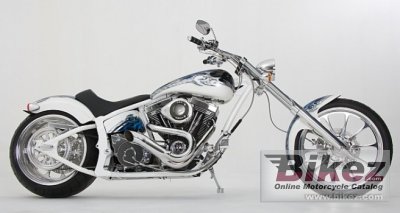

| Saxon's profilation of this bike |
| The Villain is our low and mean pro street. With a huge 300MM rear tire, it´s forged to deliver power and attitude, with a remarkably smooth ride. |
|
General information |
|
Motorcycle name
|
Saxon Villain |
|
Year of manufacture
|
2012 |
|
Type
|
Custom / cruiser |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
1573.0 ccm (95.98 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
V-twin, 45 degrees. |
|
Compression
|
10.1:1 |
|
Bore x stroke
|
94.0 x 119.4 mm (3.7 x 4.7 inches) |
|
Fuel system
|
Carburettor. S and S Super E |
|
Ignition
|
Electronic |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
6-speed right side drive. Chain primary drive. |
|
Driveline
|
Chain primary drove. Belt final drive. |
|
Exhaust system
|
Dynotuned 2 into 1 pipes |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Stretch 0 inch Downtube, 4 inch Backbone |
|
Rake (fork angle)
|
45.0° |
|
Front suspension
|
Telescopic, 41 mm |
|
Rear suspension
|
Hidden Progressive Shocks |
|
Front tire
|
90/90-21 |
|
Rear tire
|
300/55-18 |
|
Front brakes
|
Single disc. Bremo 4-piston calipers |
|
Rear brakes
|
Single disc. Bremo 2-piston calipers |
|
Wheels
|
80 Spoke Wheels |
|
Physical measures and capacities |
|
Dry weight
|
283.5 kg (625.0 pounds) |
|
Seat height
|
648 mm (25.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2667 mm (105.0 inches) |
|
Wheelbase
|
2070 mm (81.5 inches) |
|
Fuel capacity
|
15.14 litres (4.00 US gallons) |
|
Other specifications |
|
Color options
|
All polished or custom paint. |
|
Starter
|
Electric |
|
Instruments
|
Digital with integrated tach |
|
Factory warranty
|
24 months factory warranty |
|
Comments
|
Customizable. Various options. |
