| Saxon's profilation of this bike |
| Saxon uses a highly structured production line for final assembly of its motorcycles. In addition, numerous quality control checks and procedures are utilized and tracked in order to monitor performance trends and ensure continuous improvement. |
|
General information |
|
Model name
|

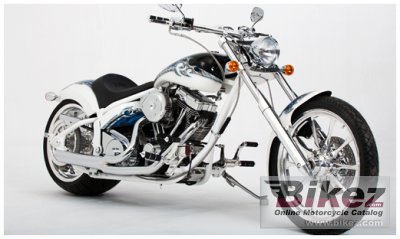

Saxon Villain |
|
Year model
|
2011 |
|
Type
|
Custom / cruiser |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
1573.0 ccm (95.98 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
V-twin, 45 degrees. |
|
Bore x stroke
|
94.0 x 119.4 mm (3.7 x 4.7 inches) |
|
Fuel system
|
Carburettor. S and S Super E |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
6-speed right side drive. Chain primary drive. |
|
Driveline
|
Chain primary drove. Belt final drive. |
|
Exhaust system
|
Dynotuned 2 into 1 pipes |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Stretch 0 inch Downtube, 4 inch Backbone |
|
Rake (fork angle)
|
45.0° |
|
Front suspension
|
Telescopic, 41 mm |
|
Rear suspension
|
Hidden Progressive Shocks |
|
Front tire
|
90/90-21 |
|
Rear tire
|
260/55-18 |
|
Front brakes
|
Single disc. Bremo 4-piston calipers |
|
Rear brakes
|
Single disc. Bremo 2-piston calipers |
|
Wheels
|
Various options |
|
Physical measures and capacities |
|
Dry weight
|
295.7 kg (652.0 pounds) |
|
Seat height
|
648 mm (25.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2667 mm (105.0 inches) |
|
Wheelbase
|
2070 mm (81.5 inches) |
|
Fuel capacity
|
15.14 litres (4.00 US gallons) |
|
Oil capacity
|
3.30 litres (3.49 US quarts) |
|
Other specifications |
|
Color options
|
All polished or custom paint. |
|
Starter
|
Electric |
|
Instruments
|
Digital speedo |
|
Factory warranty
|
24 months |
|
Comments
|
Customizable. |
