| Saxon's profilation of this bike |
| The Reaper is a bold bobber rigid with an uncompromised styling and price that´s second to none. |
|
General information |
|
Model
|

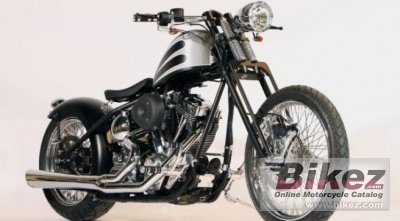

Saxon Reaper |
|
Model year
|
2012 |
|
Category
|
Custom / cruiser |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
1573.0 ccm (95.98 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
45 degree v-twin |
|
Compression
|
10.1:1 |
|
Bore x stroke
|
94.0 x 116.8 mm (3.7 x 4.6 inches) |
|
Fuel system
|
Carburettor. S and S Super E Carburator |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Electronic |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
Chain primary and final drive. Right Side Drive. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Stretch 0 inch Downtube 2 inch Backbone |
|
Rake (fork angle)
|
34.0° |
|
Front suspension
|
41mm Telescopic fork |
|
Front tire
|
90/90-21 |
|
Rear tire
|
200-18 |
|
Front brakes
|
Single disc. Bremo 4-piston calipers |
|
Rear brakes
|
Single disc. Bremo 2- piston calipers |
|
Wheels
|
80 Spoke Wheels |
|
Physical measures and capacities |
|
Dry weight
|
195.0 kg (430.0 pounds) |
|
Seat height
|
660 mm (26.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2413 mm (95.0 inches) |
|
Wheelbase
|
1727 mm (68.0 inches) |
|
Fuel capacity
|
12.30 litres (3.25 US gallons) |
|
Oil capacity
|
3.30 litres (3.49 US quarts) |
|
Other specifications |
|
Color options
|
Custom graphics and paint. |
|
Instruments
|
Digital speedometer with integrated tachometer |
|
Factory warranty
|
24 months factory warranty |
