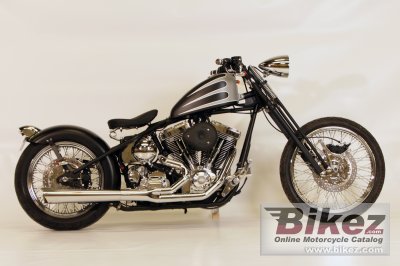

| Saxon's profilation of this bike |
| The Henchman is a slightly villainous, “hard-core” bike with a twinch of the dark side. It combines the looks of a classic old school chopper, but is built with modern technology. It is a new “oldschool”: a no-nonsense bike presenting a beautiful style of the old days, but with the comfort and quality of today. |
|
General information |
|
Model name
|
Saxon Henchman |
|
Year
|
2012 |
|
Category
|
Custom / cruiser |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
1573.0 ccm (95.98 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
S and S engine |
|
Compression
|
10.1:1 |
|
Bore x stroke
|
92.1 x 117.5 mm (3.6 x 4.6 inches) |
|
Fuel system
|
Carburettor. Mikuni HSR 42 |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Electronic |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
Chain primary drive. Belt final drive. Rivera Primo, 6 speed left side drive |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
35.0° |
|
Front suspension
|
Telescopic fork, optional springer front |
|
Rear suspension
|
None |
|
Front tire
|
2.15-21 |
|
Rear tire
|
200-18 |
|
Front brakes
|
Single disc. Bremo 4-piston calipers |
|
Rear brakes
|
Single disc. Bremo 2 piston calipers |
|
Physical measures and capacities |
|
Dry weight
|
232.0 kg (511.5 pounds) |
|
Seat height
|
660 mm (26.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2340 mm (92.1 inches) |
|
Wheelbase
|
1700 mm (66.9 inches) |
|
Fuel capacity
|
12.30 litres (3.25 US gallons) |
|
Oil capacity
|
2.80 litres (2.96 US quarts) |
|
Other specifications |
|
Color options
|
Custom colors |
|
Starter
|
Electric |
|
Instruments
|
Digital with integrated tach |
|
Factory warranty
|
2 years unlimited mileage in Europe |
