| Saxon's profilation of this bike |
| New for 2009, The Henchman combines retro styling with high quality components at an unbeatable value. |
|
General information |
|
Motorcycle name
|

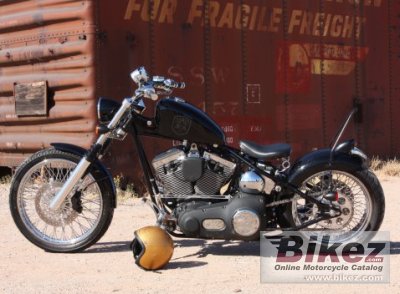

Saxon Henchman |
|
Year
|
2009 |
|
Category
|
Custom / cruiser |
|
Rating
|
2.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1573.0 ccm (95.98 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Compression
|
10.1:1 |
|
Bore x stroke
|
94.0 x 116.8 mm (3.7 x 4.6 inches) |
|
Fuel system
|
Carburettor. S and S Super E Carburator |
|
Fuel control
|
Overhead Valves (OHV) |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Fuel consumption
|
3.50 litres/100 km (28.6 km/l or 67.21 mpg) |
|
Greenhouse gases
|
81.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Stretch 0 In Downtube 1-3/4 In Backbon |
|
Rake (fork angle)
|
35.0° |
|
Front suspension
|
Springer or 41mm Telescopic |
|
Rear suspension
|
Rigid |
|
Front tire
|
2.15-21 |
|
Rear tire
|
200-16 |
|
Front brakes
|
Single disc. Brembo 4-piston calipers |
|
Rear brakes
|
Single disc. Brembo 2- piston calipers |
|
Physical measures and capacities |
|
Dry weight
|
283.5 kg (625.0 pounds) |
|
Seat height
|
660 mm (26.0 inches) If adjustable, lowest setting. |
|
Fuel capacity
|
11.35 litres (3.00 US gallons) |
|
Oil capacity
|
3.30 litres (3.49 US quarts) |
|
Other specifications |
|
Starter
|
Electric |
