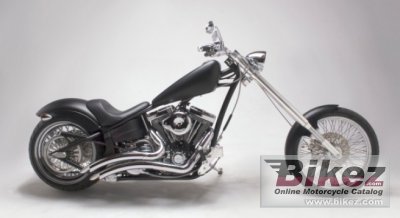

Saxon Griffin 20122012 Saxon Griffin specifications, pictures, reviews and rating |
| Saxon's profilation of this bike |
| The Griffin is designed for riders who crave a maxed out beefy machine, the Griffin delivers and then some. |
| General information | |
|---|---|
| Motorcycle name | Saxon Griffin |
| Model year | 2012 |
| Category | Custom / cruiser |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 1566.0 ccm (95.56 cubic inches) |
| Engine type | V2, four-stroke |
| Compression | 10.1:1 |
| Fuel system | Carburettor. S and S Super E |
| Fuel control | Overhead Valves (OHV) |
| Cooling system | Air |
| Transmission type | Chain (final drive) |
| Driveline | Chain primary drive. Belt final drive. 6 speed right-side drive. |
| Exhaust system | Various options |
| Chassis, suspension, brakes and wheels | |
| Frame type | Stretch: 6 inch Downtube, 2 inch Backbone |
| Rake (fork angle) | 43.0° |
| Front suspension | 68 mm telescopic fork 11 inch Over |
| Rear suspension | Hidden Shocks |
| Front tire | 90/90-21 |
| Rear tire | 300-18 |
| Front brakes | Single disc. Bremo 4-piston calipers |
| Rear brakes | Single disc. Bremo 2/piston calipers |
| Wheels | 80 Spoke Wheels |
| Physical measures and capacities | |
| Dry weight | 297.1 kg (655.0 pounds) |
| Seat height | 660 mm (26.0 inches) If adjustable, lowest setting. |
| Overall length | 2743 mm (108.0 inches) |
| Wheelbase | 2070 mm (81.5 inches) |
| Fuel capacity | 15.00 litres (3.96 US gallons) |
| Oil capacity | 3.30 litres (3.49 US quarts) |
| Other specifications | |
| Starter | Electric |
| Instruments | Digital with integrated tach |
| Electrical | 550 CCA battery |
| Factory warranty | 2-Year Factory Warranty |
| Comments | Customizable. |
