| Saxon's profilation of this bike |
| The Saxon group has assembled a winning combination of team members with industry experience in design, engineering and manufacturing. This team is dedicated to growing Saxon into one of the top manufacturers of production custom motorcycles in the world. |
|
General information |
|
Motorcycle name
|

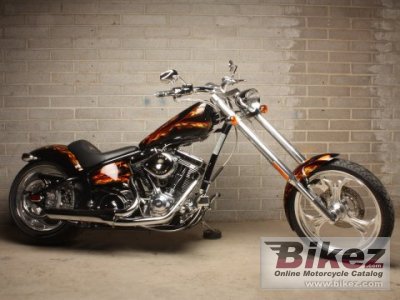

Saxon Griffin |
|
Year
|
2011 |
|
Category
|
Custom / cruiser |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
1573.0 ccm (95.98 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Compression
|
10.1:1 |
|
Fuel system
|
Carburettor. S and S Super E |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Electronic |
|
Cooling system
|
Air |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
Chain primary drive. Belt final drive. 6 speed right-side drive. |
|
Exhaust system
|
Various options |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Stretch: 6 inch Downtube, 2 inch Backbone |
|
Rake (fork angle)
|
43.0° |
|
Front suspension
|
68 mm telescopic fork 11 inch Over |
|
Rear suspension
|
Hidden Shocks |
|
Front tire
|
90/90-21 |
|
Rear tire
|
300-18 |
|
Front brakes
|
Single disc. Bremo 4-piston calipers |
|
Rear brakes
|
Single disc. Bremo 2/piston calipers |
|
Wheels
|
Various options |
|
Seat
|
Various options |
|
Physical measures and capacities |
|
Dry weight
|
297.0 kg (654.8 pounds) |
|
Seat height
|
660 mm (26.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2743 mm (108.0 inches) |
|
Wheelbase
|
2070 mm (81.5 inches) |
|
Fuel capacity
|
15.00 litres (3.96 US gallons) |
|
Other specifications |
|
Color options
|
Custom colors |
|
Starter
|
Electric |
|
Instruments
|
Digital |
|
Factory warranty
|
2 years unlimited mileage |
|
Comments
|
Customizable model. |
