| Saxon's profilation of this bike |
| In house operations include Research and Development, Engineering, Paint, Powder Coating, Pre-Assembly, Final Assembly, Quality Control, Accounting, Customer Service and Warranty. |
|
General information |
|
Model name
|

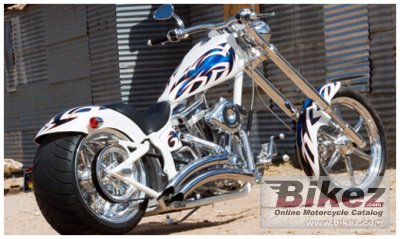

Saxon Griffin |
|
Year of manufacture
|
2010 |
|
Type
|
Custom / cruiser |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
1573.0 ccm (95.98 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Compression
|
10.1:1 |
|
Fuel system
|
Carburettor. S and S Super E |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Fuel consumption
|
3.50 litres/100 km (28.6 km/l or 67.21 mpg) |
|
Greenhouse gases
|
81.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Stretch: 6 In Downtube, 2 In Backbone |
|
Rake (fork angle)
|
43.0° |
|
Front suspension
|
68 mm telescopic fork 11 inch Over |
|
Rear suspension
|
Hidden Shocks |
|
Front tire
|
90/90-21 |
|
Rear tire
|
300-18 |
|
Front brakes
|
Single disc. Brembo 4-piston calipers |
|
Rear brakes
|
Single disc. Brembo 2/piston calipers |
|
Physical measures and capacities |
|
Dry weight
|
297.1 kg (655.0 pounds) |
|
Seat height
|
660 mm (26.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2743 mm (108.0 inches) |
|
Wheelbase
|
2070 mm (81.5 inches) |
|
Fuel capacity
|
15.14 litres (4.00 US gallons) |
|
Other specifications |
|
Color options
|
Custom colors |
|
Starter
|
Electric |
|
Comments
|
Customizable. |
