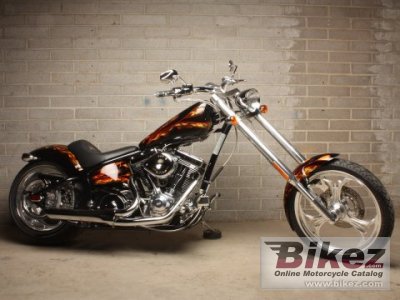

Saxon Griffin 20092009 Saxon Griffin specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Saxon Griffin |
| Year of manufacture | 2009 |
| Type | Custom / cruiser |
| Rating | 3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1573.0 ccm (95.98 cubic inches) |
| Type of engine | V2, four-stroke |
| Compression | 10.1:1 |
| Bore x stroke | 94.0 x 119.4 mm (3.7 x 4.7 inches) |
| Fuel system | Carburettor. S and S Super E |
| Fuel control | Overhead Valves (OHV) |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Fuel consumption | 3.50 litres/100 km (28.6 km/l or 67.21 mpg) |
| Greenhouse gases | 81.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Stretch: 6 In Downtube, 2 In Backbone |
| Rake (fork angle) | 43.0° |
| Front suspension | 64 mm Inverted 11 In Over |
| Rear suspension | Hidden Progressive Shocks |
| Front tire | 2.15-21 |
| Rear tire | 300-18 |
| Front brakes | Single disc. Brembo 4-piston calipers |
| Rear brakes | Single disc. Brembo |
| Physical measures and capacities | |
| Dry weight | 297.1 kg (655.0 pounds) |
| Seat height | 660 mm (26.0 inches) If adjustable, lowest setting. |
| Overall length | 2743 mm (108.0 inches) |
| Wheelbase | 2070 mm (81.5 inches) |
| Fuel capacity | 15.14 litres (4.00 US gallons) |
| Oil capacity | 3.30 litres (3.49 US quarts) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Saxon Griffin discussion group or the general Saxon discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2009 Saxon Griffin discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Saxon bike | |
Racing track capabilities for the 2009 Saxon Griffin:  (83.8 out of 100)Click here for complete rating. |
|
