| Saxon's profilation of this bike |

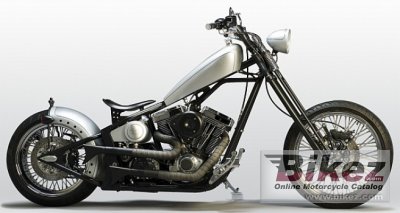

| The Crown is a truly unique highneck chopper, inspired by the minimalistic approach of the 1950s and ‘60s. The motorcycle has clean lines and many custom designed parts like the gas tank, rear fender and oil bag. |
|
General information |
|
Model
|
Saxon Crown |
|
Year model
|
2012 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.3 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1566.0 ccm (95.56 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
45 degree V-twin |
|
Compression
|
10.1:1 |
|
Bore x stroke
|
94.0 x 116.8 mm (3.7 x 4.6 inches) |
|
Fuel system
|
Carburettor. Mikuni HSR42 |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
CDI |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
Chain primary and final. 6-Speed Left Side transmisssion. |
|
Fuel consumption
|
6.70 litres/100 km (14.9 km/l or 35.11 mpg) |
|
Greenhouse gases
|
155.4 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Stretch 6 In Downtube - 2 In Backbone |
|
Rake (fork angle)
|
34.0° |
|
Front suspension
|
Springer 4´´ over |
|
Rear suspension
|
Hidden Progressive Shocks |
|
Front tire
|
120/70-21 |
|
Rear tire
|
240-18 |
|
Front brakes
|
Single disc. Bremo 4-piston calipers |
|
Rear brakes
|
Single disc. Bremo 2- piston calipers |
|
Wheels
|
80 Spoke Wheels |
|
Seat
|
Solo seat |
|
Physical measures and capacities |
|
Dry weight
|
275.0 kg (606.3 pounds) |
|
Seat height
|
635 mm (25.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2490 mm (98.0 inches) |
|
Wheelbase
|
1880 mm (74.0 inches) |
|
Fuel capacity
|
12.50 litres (3.30 US gallons) |
|
Oil capacity
|
3.30 litres (3.49 US quarts) |
|
Other specifications |
|
Starter
|
Electric |
|
Instruments
|
Digital speedometer with integrated Tach |
|
Electrical
|
550 CCA battery |
|
Factory warranty
|
24 months factory warranty |
