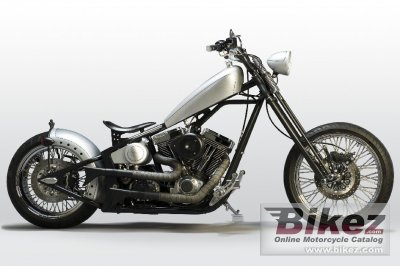

| Saxon's profilation of this bike |
| Saxon motorcyclecs come standard with polished billet components. The front end, forward controls and grips are machined from high quality aluminum and polished to perfection |
|
General information |
|
Model name
|
Saxon Crown |
|
Year
|
2011 |
|
Category
|
Custom / cruiser |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
1573.0 ccm (95.98 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
45 degree V-twin |
|
Compression
|
10.1:1 |
|
Bore x stroke
|
94.0 x 116.8 mm (3.7 x 4.6 inches) |
|
Fuel system
|
Carburettor. S and S Super E Carburator |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
CDI |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
Chain primary and final |
|
Fuel consumption
|
6.70 litres/100 km (14.9 km/l or 35.11 mpg) |
|
Greenhouse gases
|
155.4 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Stretch 6 In Downtube - 2 In Backbone |
|
Rake (fork angle)
|
34.0° |
|
Front suspension
|
Springer 4ยดยด over |
|
Rear suspension
|
Hidden Progressive Shocks |
|
Front tire
|
120/70-21 |
|
Rear tire
|
240-18 |
|
Front brakes
|
Single disc. Bremo 4-piston calipers |
|
Rear brakes
|
Single disc. Bremo 2- piston calipers |
|
Wheels
|
Various options |
|
Physical measures and capacities |
|
Dry weight
|
283.5 kg (625.0 pounds) |
|
Seat height
|
635 mm (25.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2489 mm (98.0 inches) |
|
Wheelbase
|
1880 mm (74.0 inches) |
|
Fuel capacity
|
12.30 litres (3.25 US gallons) |
|
Oil capacity
|
3.30 litres (3.49 US quarts) |
|
Other specifications |
|
Color options
|
Custom color |
|
Starter
|
Electric |
|
Instruments
|
Digital speedometer with integrated Tach |
|
Electrical
|
550 CCA battery |
|
Factory warranty
|
2 years |
