General information |
|
Model name
|

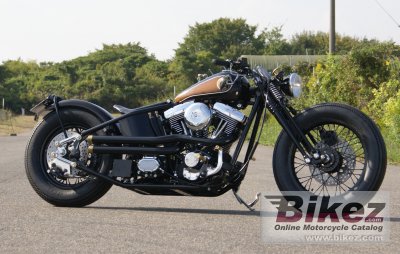

Samurai Chopper Type 9 Shogun |
|
Model year
|
2009 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.3 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1337.0 ccm (81.58 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Full-transistor |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
ZERO Original Dragon Neck |
|
Front suspension
|
ZERO Original 74 Springer |
|
Rear suspension
|
ZERO Original Multi-Link |
|
Front tire
|
4.50-18 |
|
Rear tire
|
5.00-16 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
250.0 kg (551.2 pounds) |
|
Seat height
|
640 mm (25.2 inches) If adjustable, lowest setting. |
|
Overall height
|
940 mm (37.0 inches) |
|
Overall length
|
2380 mm (93.7 inches) |
|
Overall width
|
810 mm (31.9 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1680 mm (66.1 inches) |
|
Fuel capacity
|
10.00 litres (2.64 US gallons) |
|
Other specifications |
|
Color options
|
Dark Brown/Light Brown |
|
Starter
|
Electric |
|
Comments
|
Made by Zero Engineering. HD EVO engine. Samurai Chopper where formerly named Road Hopper. |
