General information |
|
Model
|

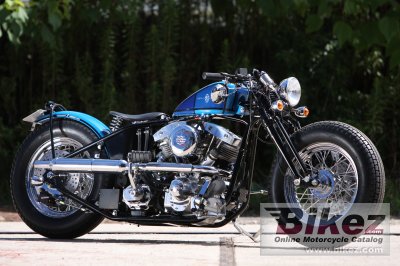

Samurai Chopper Type 5 Shovel |
|
Year of manufacture
|
2009 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1337.0 ccm (81.58 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Compression
|
10.1:1 |
|
Bore x stroke
|
101.6 x 114.3 mm (4.0 x 4.5 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Semi-transistor |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Zero Engineering Original Rigid Goose Neck |
|
Front suspension
|
74 Springer |
|
Front tire
|
5.00-16 |
|
Rear tire
|
5.00-16 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
240.0 kg (529.1 pounds) |
|
Seat height
|
680 mm (26.8 inches) If adjustable, lowest setting. |
|
Overall height
|
920 mm (36.2 inches) |
|
Overall length
|
2300 mm (90.6 inches) |
|
Overall width
|
710 mm (28.0 inches) |
|
Ground clearance
|
100 mm (3.9 inches) |
|
Wheelbase
|
1600 mm (63.0 inches) |
|
Fuel capacity
|
8.00 litres (2.11 US gallons) |
|
Oil capacity
|
2.80 litres (2.96 US quarts) |
|
Other specifications |
|
Color options
|
Smokey Blue/Black, Bright Yellow/Black, Real Black |
|
Starter
|
Electric & kick |
|
Comments
|
Made by Japanese Zero Engineering. S and S engine. Samurai Chopper where formerly named Road Hopper. |
