| Rokon's profilation of this bike |
| There are many options to consider like 4 different color options including red, forest green, black and olive drab with Realtree Camouflage seats. There are 4 different wheel choices including 12 and 15 inch steel spoke and 12 and 15 inch aluminum drum. All ROKON accessories fit a Ranger, too. |
|
General information |
|
Model
|

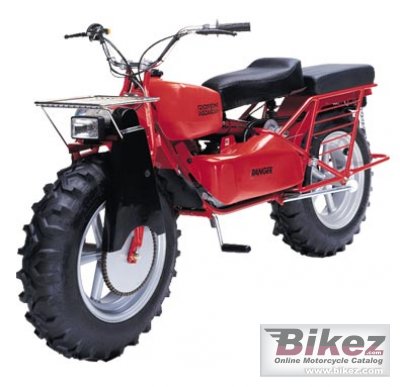

Rokon Ranger |
|
Model year
|
2012 |
|
Category
|
Enduro / offroad |
| Price as new | US$ 6175. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
2.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
160.0 ccm (9.76 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Engine details
|
Honda fan-cooled engine |
|
Power output
|
5.5 HP (4.0 kW)) @ 3900 RPM |
|
Fuel system
|
Carburettor. Horizontal type, butterfly valve |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Transistorized magneto |
|
Cooling system
|
Oil & air |
|
Gearbox
|
3-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
Full time, front and rear wheel drive. Automatic torque converter into a three-gear range selector. |
|
Exhaust system
|
Muffler and US Forestry approved spark arrestor |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
5.90-15 |
|
Rear tire
|
5.90-15 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Wheels
|
Steel spoke |
|
Physical measures and capacities |
|
Dry weight
|
93.0 kg (205.0 pounds) |
|
Power/weight ratio
|
0.0591 HP/kg |
|
Overall height
|
762 mm (30.0 inches) |
|
Overall length
|
2007 mm (79.0 inches) |
|
Ground clearance
|
381 mm (15.0 inches) |
|
Wheelbase
|
1295 mm (51.0 inches) |
|
Fuel capacity
|
10.18 litres (2.69 US gallons) |
|
Other specifications |
|
Color options
|
Red, green, black, camouflage |
|
Starter
|
Kick |
|
Electrical
|
88 watt charging system |
|
Factory warranty
|
1 year Limited Warranty |
|
Comments
|
The electric starter is optional. |
