| Rokon's profilation of this bike |
| Ranger breaks new ground with a quiet and easy starting four-stroke Honda engine. Smooth and reliable power delivery means years of trouble-free use to tackle nasty off-road and work situations. |
|
General information |
|
Motorcycle name
|

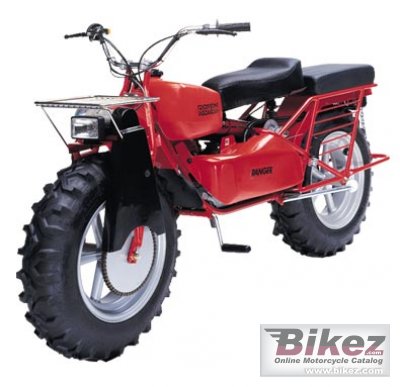

Rokon Ranger |
|
Year of manufacture
|
2010 |
|
Type
|
Enduro / offroad |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
160.0 ccm (9.76 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
5.5 HP (4.0 kW)) @ 3900 RPM |
|
Fuel system
|
Carburettor. Horizontal type, butterfly valve |
|
Ignition
|
Transistorized magneto |
|
Cooling system
|
Oil & air |
|
Gearbox
|
3-speed |
|
Exhaust system
|
Muffler and US Forestry approved spark arrestor |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
5.90-15 |
|
Rear tire
|
5.90-15 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
93.0 kg (205.0 pounds) |
|
Power/weight ratio
|
0.0592 HP/kg |
|
Overall height
|
762 mm (30.0 inches) |
|
Overall length
|
2007 mm (79.0 inches) |
|
Overall width
|
787 mm (31.0 inches) |
|
Ground clearance
|
381 mm (15.0 inches) |
|
Wheelbase
|
1295 mm (51.0 inches) |
|
Fuel capacity
|
10.18 litres (2.69 US gallons) |
|
Other specifications |
|
Color options
|
Red, green, black, camouflage |
|
Starter
|
Electric & kick |
|
Comments
|
Honda engine. The electric starter is optional. |
