| General information |
|---|

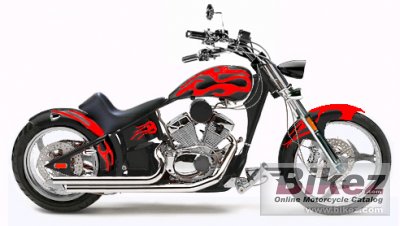

| Model: | Rhino Hunter Softail FLM004 |
| Year: | 2009 |
| Category: | Custom / cruiser |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 250.0 ccm (15.26 cubic inches) |
| Engine type: | V2, four-stroke |
| Compression: | 10.0:1 |
| Fuel system: | Carburettor |
| Ignition: | CDI |
| Lubrication system: | Pressure Splashed, Rotot Cycloid |
| Cooling system: | Air |
| Gearbox: | 5-speed |
| Clutch: | Wet, multiple |
| Exhaust system: | 2 OD Double Chopper Custom Exhausts |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | RHINO Pro Street Softail Single Downtube 2ยด Backbone Stretch |
| Rake (fork angle): | 38.0° |
| Front suspension: | 41mm Forks, triple tree |
| Front tire: | 90/90-21 |
| Rear tire: | 20/50-18 |
| Front brakes: | Single disc |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Seat height: | 660 mm (26.0 inches) If adjustable, lowest setting. |
| Overall length: | 2642 mm (104.0 inches) |
| Oil capacity: | 1.30 litres (1.37 US quarts) |
| Other specifications |
|---|
| Color options: | Red/black |
| Starter: | Electric |
| Update specs | Report missing specs or required updates. |
