| Rhino's profilation of this bike |
| A perfect platform is what gives this beauty the dependable performance on any open road.
|
|
General information |
|
Model
|

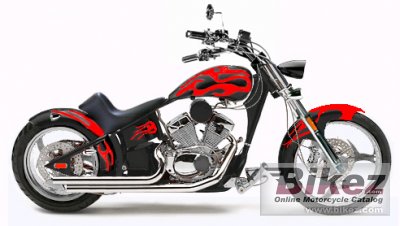

Rhino FLM-004 Hunter Softail |
|
Year model
|
2012 |
|
Type
|
Custom / cruiser |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
250.0 ccm (15.26 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
17.0 HP (12.4 kW)) |
|
Compression
|
10.0:1 |
|
Fuel system
|
Carburettor. Minkuni |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
C.D.I |
|
Lubrication system
|
Pressure Splashed, Rotot Cycloid |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiple |
|
Exhaust system
|
2 OD Double Chopper Custom Exhausts |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Pro Street Softail Single Downtube 2ยด Backbone Stretch |
|
Rake (fork angle)
|
38.0° |
|
Front suspension
|
41mm Forks, triple tree |
|
Front tire
|
100/90-19 |
|
Rear tire
|
200/50-18 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Wheels
|
Hyper silver 3-spoke alloy wheels. |
|
Physical measures and capacities |
|
Dry weight
|
190.5 kg (420.0 pounds) |
|
Power/weight ratio
|
0.0892 HP/kg |
|
Seat height
|
660 mm (26.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2642 mm (104.0 inches) |
|
Wheelbase
|
1778 mm (70.0 inches) |
|
Oil capacity
|
1.30 litres (1.37 US quarts) |
|
Other specifications |
|
Color options
|
Red/black. Tribal flame design. |
|
Starter
|
Electric |
|
Carrying capacity
|
Storage Compartment Under Seat |
|
Comments
|
Silver with chrome cover engine finish. |
