| Quantya's profilation of this bike |

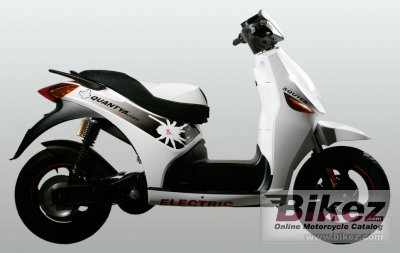

| The Quantya Squter P1, pronounced “scooter P one”, is an electric scooter designed with inner city commuters looking for a fun and eco-friendly, zero emissions way to get about in mind. |
| General moped information |
|---|
| Model: | Quantya Squter P1 |
| Year: | 2011 |
| Category: | Scooter |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Engine type: | Electric |
| Engine details: | Axial Gap DC brush motor with Quantya Lithium Polymer battery |
| Power: | 9.39 HP (6.9 kW)) |
| Torque: | 17.00 Nm (1.7 kgf-m or 12.5 ft.lbs) |
| Top speed: | 80.0 km/h (49.7 mph) |
| Cooling system: | Air |
| Gearbox: | Automatic |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Paioli |
| Rear suspension: | Paioli |
| Front brakes: | Single disc |
| Front brakes diameter: | 220 mm (8.7 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Wheels: | 12 inch wheels |
| Physical measures and capacities |
|---|
| Dry weight: | 112.0 kg (246.9 pounds) |
| Power/weight ratio: | 0.0838 HP/kg |
| Seat height: | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,380 mm (54.3 inches) |
| Other specifications |
|---|
| Color options: | White |
| Starter: | Electric |
| Comments: | Range: 70km/43 miles. 74 Volt 40 Ah battery. Full charge time: Normal 4.5 hours or fast 2 hours. Cycles of charge: min 1000. |
| Further information |
|---|
