| Quantya's profilation of this bike |
| A lower saddle height, a shorter wheelbase, and smaller wheels combined with a slightly lower power output make the bike more user friendly and perfect for smaller riders. The components are still top quality and capable of out accelerating similar combustion engine bikes. |
|
General information |
|
Motorcycle name
|

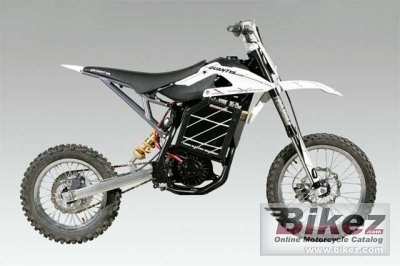

Quantya MMX Junior |
|
Year of manufacture
|
2012 |
|
Type
|
Minibike, cross |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Type of engine
|
Electric |
|
Engine details
|
Axial Gap DC brush motor. |
|
Output
|
7.4 HP (5.4 kW)) |
|
Torque
|
16.0 Nm (1.6 kgf-m or 11.8 ft.lbs) |
|
Top speed
|
50.0 km/h (31.1 mph) |
|
Cooling system
|
Air |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Paioli fork |
|
Rear suspension
|
Paioli monoshock |
|
Front tire
|
2.50-17 |
|
Rear tire
|
2.50-14 |
|
Wheels
|
Front 17 inch, rear 14 inch |
|
Physical measures and capacities |
|
Dry weight
|
74.0 kg (163.1 pounds) |
|
Power/weight ratio
|
0.0997 HP/kg |
|
Seat height
|
860 mm (33.9 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1270 mm (50.0 inches) |
|
Other specifications |
|
Color options
|
White/black |
|
Starter
|
Electric |
|
Comments
|
52V 40Ah Lithium Polymer battery. Full charge time: Normal 2 hours/Fast 1 hours. Range: 40km/25 miles. |
