| Qlink's profilation of this bike |
| Fully automatic transmission is the most advanced drive system in ATVs. An automatic centrifugal clutch which maintains constant belt tension for reduced belt wear and front/rear-wheel downhill engine braking. |
|
General information |
|
Motorcycle name
|

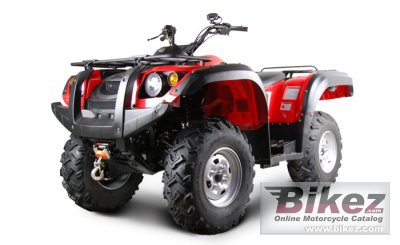

Qlink Rodeo 700 |
|
Model year
|
2010 |
|
Category
|
ATV |
| Price as new | US$ 4750. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
686.0 ccm (41.86 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
33.5 HP (24.5 kW)) |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
102.0 x 84.0 mm (4.0 x 3.3 inches) |
|
Fuel system
|
Carburettor. PD42J |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent Double A-Arm |
|
Rear suspension
|
Independent Double A-Arm |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
328.0 kg (723.0 pounds) |
|
Power/weight ratio
|
0.1021 HP/kg |
|
Overall height
|
1214 mm (47.8 inches) |
|
Overall length
|
2230 mm (87.8 inches) |
|
Overall width
|
1120 mm (44.1 inches) |
|
Fuel capacity
|
16.65 litres (4.40 US gallons) |
|
Other specifications |
|
Color options
|
Red, camo |
|
Starter
|
Electric |
|
Comments
|
2WD/4WD pushbutton switch. Automatic CVT with L-H-N-R-P. |
