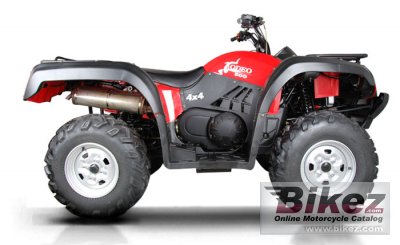

Qlink Rodeo 500 20132013 Qlink Rodeo 500 specifications, pictures, reviews and rating |
| Qlink's profilation of this bike |
| Digital instrument adds greater visibility, versatility, and allows rider to keep track of speed, water temperature, engine rotate speed, mileage, and time. |
| General information | |
|---|---|
| Motorcycle name | Qlink Rodeo 500 |
| Year of manufacture | 2013 |
| Type | ATV |
| Price as new | US$ 5299. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 471.0 ccm (28.74 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 22.8 HP (16.6 kW)) |
| Compression | 9.4:1 |
| Bore x stroke | 84.5 x 84.0 mm (3.3 x 3.3 inches) |
| Fuel system | Carburettor. PD33J-A |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Shaft drive (cardan) (final drive) |
| Driveline | 4WD and differential lock |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent Double A-Arm |
| Rear suspension | Independent Double A-Arm |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 327.5 kg (722.0 pounds) |
| Power/weight ratio | 0.0696 HP/kg |
| Seat height | 861 mm (33.9 inches) If adjustable, lowest setting. |
| Overall height | 1214 mm (47.8 inches) |
| Overall length | 2230 mm (87.8 inches) |
| Overall width | 1120 mm (44.1 inches) |
| Ground clearance | 257 mm (10.1 inches) |
| Fuel capacity | 16.65 litres (4.40 US gallons) |
| Other specifications | |
| Color options | Red, camo |
| Starter | Electric & kick |
| Instruments | Digital |
| Factory warranty | 1 Year Limited |
| Comments | 2WD/4WD. Automatic CVT with L-H-N-R-P. Winch. |
