| Qlink's profilation of this bike |
| Four-stroke, single cylinder, air-cooled motor produces a broad power-band from a compact, fuel-efficient package. |
|
General information |
|
Model
|

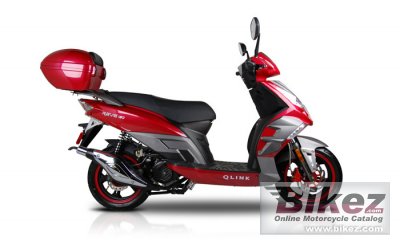

Qlink Rave 150 |
|
Year of manufacture
|
2010 |
|
Type
|
Scooter |
| Price as new | US$ 1900. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
149.6 ccm (9.13 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
12.0 HP (8.8 kW)) |
|
Torque
|
10.5 Nm (1.1 kgf-m or 7.7 ft.lbs) @ 5500 RPM |
|
Compression
|
9.8:1 |
|
Bore x stroke
|
57.8 x 57.4 mm (2.3 x 2.3 inches) |
|
Fuel system
|
Carburettor. Deni |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Hydraulic fork |
|
Rear suspension
|
Spring shock absorber |
|
Front tire
|
130/60-13 |
|
Rear tire
|
130/60-13 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
101.2 kg (223.0 pounds) |
|
Power/weight ratio
|
0.1186 HP/kg |
|
Overall height
|
1400 mm (55.1 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Fuel capacity
|
6.06 litres (1.60 US gallons) |
|
Other specifications |
|
Color options
|
Burgundy, blue, gold, white |
|
Starter
|
Electric & kick |
