General information |
|
Model
|

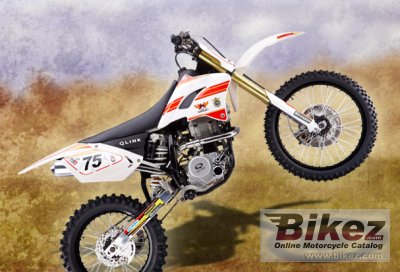

Qlink DB 250 |
|
Year
|
2012 |
|
Category
|
Enduro / offroad |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
249.0 ccm (15.19 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
24.0 HP (17.5 kW)) @ 8500 RPM |
|
Torque
|
17.0 Nm (1.7 kgf-m or 12.5 ft.lbs) @ 7000 RPM |
|
Compression
|
10.8:1 |
|
Bore x stroke
|
70.0 x 65.0 mm (2.8 x 2.6 inches) |
|
Fuel system
|
Carburettor |
|
Ignition
|
CDI |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Adjustable Inverted |
|
Rear suspension
|
Adjustable Piggyback |
|
Front tire
|
80/100-21 |
|
Rear tire
|
110/100-18 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
282.0 kg (621.7 pounds) |
|
Power/weight ratio
|
0.0851 HP/kg |
|
Seat height
|
950 mm (37.4 inches) If adjustable, lowest setting. |
|
Overall height
|
1260 mm (49.6 inches) |
|
Overall length
|
2159 mm (85.0 inches) |
|
Overall width
|
828 mm (32.6 inches) |
|
Ground clearance
|
318 mm (12.5 inches) |
|
Wheelbase
|
1499 mm (59.0 inches) |
|
Fuel capacity
|
7.95 litres (2.10 US gallons) |
|
Other specifications |
|
Factory warranty
|
30 Day Limited |
