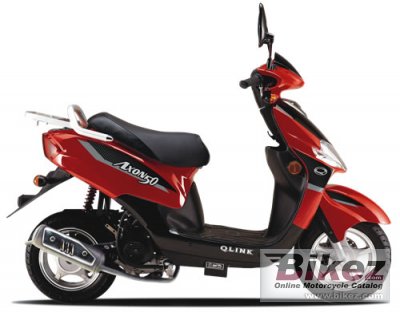

Qlink Axon 50 20072007 Qlink Axon 50 specifications, pictures, reviews and rating |
| General moped information | |
|---|---|
| Motorcycle name | Qlink Axon 50 |
| Year model | 2007 |
| Type | Scooter |
| Rating | 3.3 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 49.0 ccm (2.99 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 3.5 HP (2.6 kW)) |
| Torque | 2.8 Nm (0.3 kgf-m or 2.1 ft.lbs) @ 6000 RPM |
| Compression | 10.5:1 |
| Bore x stroke | 39.0 x 41.5 mm (1.5 x 1.6 inches) |
| Fuel system | Carburettor. Keihin |
| Ignition | CDI |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Straight tube |
| Rear suspension | Single-arm |
| Front tire | 90/90-10 |
| Rear tire | 90/90-10 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 79.8 kg (176.0 pounds) |
| Power/weight ratio | 0.0438 HP/kg |
| Seat height | 739 mm (29.1 inches) If adjustable, lowest setting. |
| Ground clearance | 104 mm (4.1 inches) |
| Wheelbase | 1181 mm (46.5 inches) |
| Fuel capacity | 6.32 litres (1.67 US gallons) |
| Other specifications | |
| Color options | Red, blue |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 07 Qlink Axon 50 discussion group or the general Qlink discussion group. |
| Related bikes | List related bikes for comparison of specs. |
