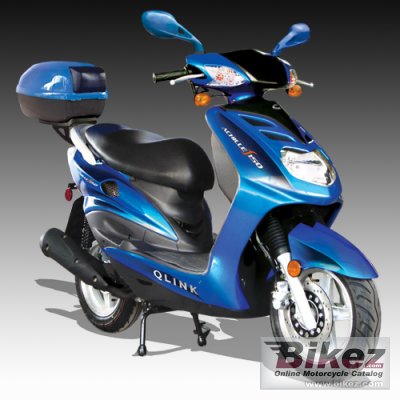

Qlink Achilles 150 20082008 Qlink Achilles 150 specifications, pictures, reviews and rating |
| Qlink's profilation of this bike |
| High performance muffler already installed for better performance and better sound quality. |
| General information | |
|---|---|
| Model name | Qlink Achilles 150 |
| Model year | 2008 |
| Category | Scooter |
| Price as new | US$ 1750. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 147.0 ccm (8.97 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 9.4 HP (6.9 kW)) |
| Torque | 9.6 Nm (1.0 kgf-m or 7.1 ft.lbs) @ 6000 RPM |
| Compression | 9.2:1 |
| Bore x stroke | 58.0 x 57.8 mm (2.3 x 2.3 inches) |
| Fuel system | Carburettor. ISO – Vacuum Diaphragm |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic Fork |
| Rear suspension | Damping Shock |
| Front tire | 110/70-12 |
| Rear tire | 120/70-12 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 110.9 kg (244.5 pounds) |
| Power/weight ratio | 0.0848 HP/kg |
| Seat height | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1389 mm (54.7 inches) |
| Fuel capacity | 6.51 litres (1.72 US gallons) |
| Other specifications | |
| Color options | Blue, red |
| Starter | Electric & kick |
| Update specs | Report missing specs or required updates. |
