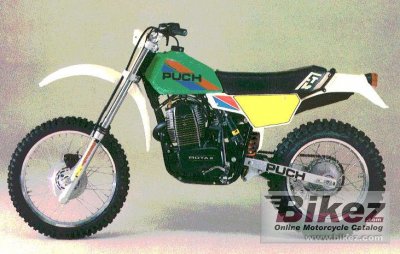

Puch GS 504 F 4 T 19851985 Puch GS 504 F 4 T specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Puch GS 504 F 4 T |
| Year of manufacture | 1985 |
| Type | Enduro / offroad |
| Rating | 3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 502.0 ccm (30.63 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 27.0 HP (19.7 kW)) @ 7700 RPM |
| Top speed | 130.0 km/h (80.8 mph) |
| Compression | 9.2:1 |
| Bore x stroke | 90.0 x 79.0 mm (3.5 x 3.1 inches) |
| Valves per cylinder | 4 |
| Fuel control | Overhead Cams (OHC) |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front tire | 3.25-21 |
| Rear tire | 4.50-18 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 137.0 kg (302.0 pounds) |
| Fuel capacity | 9.50 litres (2.51 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 85 Puch GS 504 F 4 T discussion group or the general Puch discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Sell or buy used bikes?
Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 1985 Puch GS 504 F 4 T or advertise any other MC for sale. You can list all 1985 Puch GS 504 F 4 T available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc.| Rating sample for this Puch bike | |
Racing track capabilities for the 1985 Puch GS 504 F 4 T:  (72.6 out of 100)Click here for complete rating. |
|
