General moped information |
---|

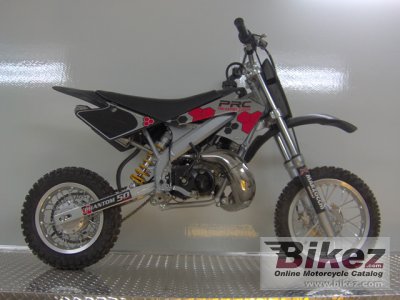

Model | PRC (Pro Racing Cycles) Phantom LX-R 50 |
Year | 2006 |
Category | Cross / motocross |
Price as new | US$ 2699. MSRP depends on country, taxes, accessories, etc. |
Rating | 2.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
---|
Displacement | 49.0 ccm (2.99 cubic inches) |
Engine type | Single cylinder, two-stroke |
Power | 12.1 HP (8.8 kW)) @ 13000 RPM |
Torque | 6.4 Nm (0.7 kgf-m or 4.7 ft.lbs) @ 10800 RPM |
Top speed | 72.4 km/h (45.0 mph) |
Max RPM | 14500 |
Compression | 13.0:1 |
Bore x stroke | 40.0 x 40.0 mm (1.6 x 1.6 inches) |
Fuel system | Carburettor. PRC 19MM |
Fuel control | Port control |
Ignition | CDI |
Lubrication system | none |
Cooling system | Liquid |
Gearbox | Automatic |
Transmission type | Chain (final drive) |
Clutch | Three Show Race Clutch with weld drum |
Exhaust system | PRC LX-R Race Ripe with aluminum silencer |
Chassis, suspension, brakes and wheels |
---|
Frame type | Steel Perimeter |
Rake (fork angle) | 26.0° |
Trail | 100 mm (3.9 inches) |
Front suspension | Marzocchi 32mm mini Cross |
Front wheel travel | 195 mm (7.7 inches) |
Rear suspension | Ohlins 36D Mono shock |
Rear wheel travel | 260 mm (10.2 inches) |
Front tire | 100/90-12 |
Rear tire | 2.75-10 |
Front brakes | Single disc. single pistoon claiper |
Diameter | 160 mm (6.3 inches) |
Rear brakes | Expanding brake (drum brake) |
Diameter | 80 mm (3.1 inches) |
Physical measures and capacities |
---|
Dry weight | 42.0 kg (92.6 pounds) |
Power/weight ratio | 0.2881 HP/kg |
Front percentage of weight | 53.0 |
Rear percentage of weight | 47.0 |
Seat height | 635 mm (25.0 inches) If adjustable, lowest setting. |
Overall height | 889 mm (35.0 inches) |
Overall length | 1346 mm (53.0 inches) |
Overall width | 737 mm (29.0 inches) |
Ground clearance | 279 mm (11.0 inches) |
Wheelbase | 1003 mm (39.5 inches) |
Other specifications |
---|
Starter | Kick |
