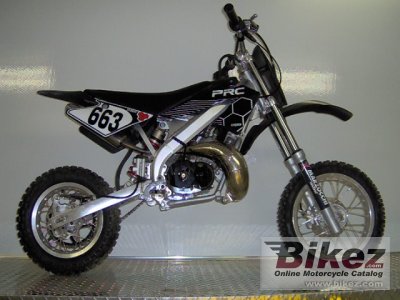

2006 PRC (Pro Racing Cycles) LX-RR Works. Picture credits - PRC (Pro Racing Cycles).
Submit more pictures.
|
|
|
General moped information |
|
Model
|
PRC (Pro Racing Cycles) LX-RR Works |
|
Model year
|
2006 |
|
Category
|
Cross / motocross |
| Price as new | US$ 4999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
50.0 ccm (3.05 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Power output
|
13.5 HP (9.9 kW)) @ 14000 RPM |
|
Torque
|
8.2 Nm (0.8 kgf-m or 6.0 ft.lbs) @ 11200 RPM |
|
Top speed
|
80.5 km/h (50.0 mph) |
|
Max RPM
|
14800 |
|
Compression
|
13.5:1 |
|
Bore x stroke
|
41.0 x 40.0 mm (1.6 x 1.6 inches) |
|
Fuel system
|
Carburettor. PRC 19MM |
|
Fuel control
|
Port control |
|
Ignition
|
Progressive CDI |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Three Disk PRC Racing clutch |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminum Perimeter (first mini perimetrer kid aluminum frame in the world |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
125 mm (4.9 inches) |
|
Front suspension
|
Marzocchi 35mm Inverted Shiver Forks |
|
Front wheel travel
|
211 mm (8.3 inches) |
|
Rear suspension
|
Olins 36DPW |
|
Rear wheel travel
|
269 mm (10.6 inches) |
|
Front tire
|
100/90-12 |
|
Rear tire
|
3.0-10 |
|
Front brakes
|
Single disc |
|
Diameter
|
160 mm (6.3 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
140 mm (5.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
36.0 kg (79.4 pounds) |
|
Power/weight ratio
|
0.3750 HP/kg |
|
Seat height
|
660 mm (26.0 inches) If adjustable, lowest setting. |
|
Overall height
|
914 mm (36.0 inches) |
|
Overall length
|
1346 mm (53.0 inches) |
|
Overall width
|
787 mm (31.0 inches) |
|
Ground clearance
|
279 mm (11.0 inches) |
|
Wheelbase
|
1016 mm (40.0 inches) |
|
Other specifications |
|
Starter
|
Kick |
