Polini X1R H2O 2010

2010 Polini X1R H2O specifications, pictures, reviews and rating

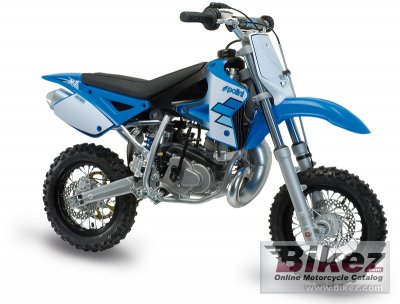

2010 Polini X1R H2O. Picture credits - Polini. Submit more pictures.

2010 Polini X1R H2O

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
List all mopeds
Tip a friend
List related bikes

General moped information
Model:	Polini X1R H2O
Year:	2010
Category:	Minibike, cross
Rating:	Do you know this bike? Click here to rate it. We miss 2 votes to show the rating.
Engine and transmission
Displacement:	49.30 ccm (3.01 cubic inches)
Engine type:	Single cylinder, four-stroke
Compression:	15.2:1
Bore x stroke:	40.0 x 39.3 mm (1.6 x 1.5 inches)
Fuel system:	Carburettor. Dell Orto PHBG 19
Cooling system:	Liquid
Gearbox:	4-speed
Transmission type, final drive:	Chain
Chassis, suspension, brakes and wheels
Front suspension:	Paioli, 33 mm
Rear suspension:	Paioli monoshock
Front tyre:	2.50-10
Rear tyre:	2.75-10
Front brakes:	Expanding brake (drum brake). Hydraulic
Front brakes diameter:	160 mm (6.3 inches)
Rear brakes:	Expanding brake (drum brake). Hydraulic
Rear brakes diameter:	140 mm (5.5 inches)
Physical measures and capacities
Dry weight:	43.0 kg (94.8 pounds)
Seat height:	600 mm (23.6 inches) If adjustable, lowest setting.
Wheelbase:	900 mm (35.4 inches)
Fuel capacity:	3.00 litres (0.79 gallons)
Other specifications
Color options:	Blue/white
Starter:	Kick
Comments:	Also available with air cooling.
Further information
Insurance costs	Compare US insurance quotes from the nation's top providers.
Parts finder	Chaparral provides online schematics & OEM parts for the US. 2Wheels offers first time 2Wheels buyers $10.00 off now. Same day shipment to the US. Also check out our overview of motorcycle webshops at Bikez.info.
Ask questions	Join the 10 Polini X1R H2O discussion group or the general Polini discussion group.
Related bikes	List related bikes for comparison of specs.

General moped information

Model:

Polini X1R H2O

Year:

2010

Category:

Minibike, cross

Rating:

Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating.

Engine and transmission

Displacement:

49.30 ccm (3.01 cubic inches)

Engine type:

Single cylinder, four-stroke

Compression:

15.2:1

Bore x stroke:

40.0 x 39.3 mm (1.6 x 1.5 inches)

Fuel system:

Carburettor. Dell Orto PHBG 19

Cooling system:

Liquid

Gearbox:

4-speed

Transmission type,
final drive:

Chain

Chassis, suspension, brakes and wheels

Front suspension:

Paioli, 33 mm

Rear suspension:

Paioli monoshock

Front tyre:

2.50-10

Rear tyre:

2.75-10

Front brakes:

Expanding brake (drum brake). Hydraulic

Front brakes diameter:

160 mm (6.3 inches)

Rear brakes:

Expanding brake (drum brake). Hydraulic

Rear brakes diameter:

140 mm (5.5 inches)

Physical measures and capacities

Dry weight:

43.0 kg (94.8 pounds)

Seat height:

600 mm (23.6 inches) If adjustable, lowest setting.

Wheelbase:

900 mm (35.4 inches)

Fuel capacity:

3.00 litres (0.79 gallons)

Other specifications

Color options:

Blue/white

Starter:

Kick

Comments:

Also available with air cooling.
