General moped information |
|
Model name
|

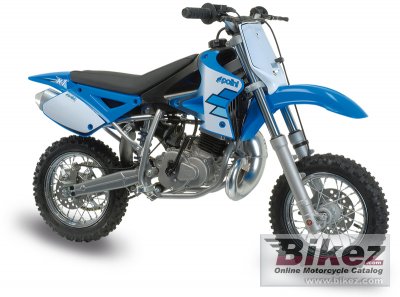

Polini X1P Air |
|
Year model
|
2010 |
|
Type
|
Minibike, cross |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
49.3 ccm (3.01 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
14.0:1 |
|
Bore x stroke
|
40.0 x 39.3 mm (1.6 x 1.5 inches) |
|
Fuel system
|
Carburettor. Dell Orto PHBN 14 |
|
Ignition
|
Electronic |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Centrifugal |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Paioli, 33 mm |
|
Rear suspension
|
Paioli monoshock |
|
Front tire
|
2.50-10 |
|
Rear tire
|
2.75-10 |
|
Front brakes
|
Expanding brake (drum brake). Hydraulic |
|
Diameter
|
150 mm (5.9 inches) |
|
Rear brakes
|
Expanding brake (drum brake). Hydraulic |
|
Diameter
|
130 mm (5.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
42.0 kg (92.6 pounds) |
|
Seat height
|
600 mm (23.6 inches) If adjustable, lowest setting. |
|
Wheelbase
|
900 mm (35.4 inches) |
|
Fuel capacity
|
3.00 litres (0.79 US gallons) |
|
Other specifications |
|
Color options
|
Blue/white |
|
Starter
|
Kick |
|
Comments
|
Also available with water cooling. |
