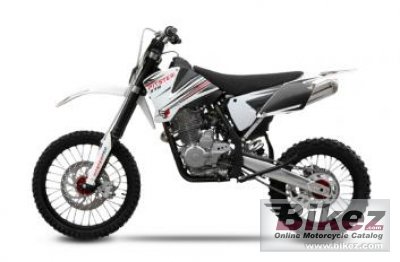

Pitster Pro XTR 230 SC 20122012 Pitster Pro XTR 230 SC specifications, pictures, reviews and rating |
| Pitster Pro's profilation of this bike |
| The XTR 230 SC was built with one purpose... to be the ultimate play bike on the market. It offers a ripping 230cc four-stroke engine with push button electric start, 19´ front and 16´ rear aluminum wheels, a low center of gravity and light on weight. |
| General information | |
|---|---|
| Motorcycle name | Pitster Pro XTR 230 SC |
| Model year | 2012 |
| Category | Enduro / offroad |
| Price as new | US$ 2199. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 223.0 ccm (13.61 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 9.0:1 |
| Bore x stroke | 65.5 x 65.5 mm (2.6 x 2.6 inches) |
| Fuel system | Carburettor. PZ30 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Stator/ CDI with lighting coil |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multi Plate Wet Clutch |
| Chassis, suspension, brakes and wheels | |
| Frame type | High Tensile Steel. Subframe: Aluminum. |
| Front suspension | Telescopic Fork w/ adj. Compression and Rebound on Each Leg |
| Rear suspension | Piggy Back Reservoir w/ adj. Compression and Rebound |
| Front tire | 70/100-19 |
| Rear tire | 90/100-16 |
| Front brakes | Single disc. Rotor W/ Floating Caliper |
| Diameter | 280 mm (11.0 inches) |
| Rear brakes | Single disc. Rotor W/ Floating Caliper |
| Diameter | 220 mm (8.7 inches) |
| Wheels | Standard |
| Physical measures and capacities | |
| Dry weight | 97.1 kg (214.0 pounds) |
| Seat height | 889 mm (35.0 inches) If adjustable, lowest setting. |
| Ground clearance | 320 mm (12.6 inches) |
| Wheelbase | 1295 mm (51.0 inches) |
| Fuel capacity | 7.99 litres (2.11 US gallons) |
| Other specifications | |
| Starter | Electric & kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 Pitster Pro XTR 230 SC discussion group or the general Pitster Pro discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
