| Pitster Pro's profilation of this bike |
| When does an off road bike become more than just another trail bike... When it inspired by full motocross race machines. The XTR 230 LC is powerful enough to out motor any other 230cc bike out there, as well as, out handle and out comfort. |
|
General information |
|
Model
|

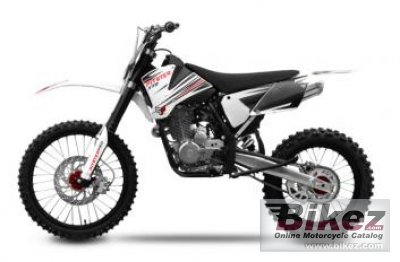

Pitster Pro XTR 230 LC |
|
Year model
|
2012 |
|
Type
|
Enduro / offroad |
| Price as new | US$ 2299. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
223.0 ccm (13.61 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
65.5 x 65.5 mm (2.6 x 2.6 inches) |
|
Fuel system
|
Carburettor. PZ30 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Stator/ CDI with lighting coil |
|
Cooling system
|
Air |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi Plate Wet Clutch |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
High Tensile Steel. Subframe: Aluminum. |
|
Front suspension
|
Telescopic Fork w/ adj. Compression and Rebound on Each Leg |
|
Rear suspension
|
Piggy Back Reservoir w/ adj. Compression and Rebound |
|
Front tire
|
3.00-21 |
|
Rear tire
|
4.60-18 |
|
Front brakes
|
Single disc. Rotor w/ Floating Caliper |
|
Diameter
|
280 mm (11.0 inches) |
|
Rear brakes
|
Single disc. Rotor w/ Floating Caliper |
|
Diameter
|
220 mm (8.7 inches) |
|
Wheels
|
Standard |
|
Physical measures and capacities |
|
Dry weight
|
97.1 kg (214.0 pounds) |
|
Ground clearance
|
351 mm (13.8 inches) |
|
Wheelbase
|
1410 mm (55.5 inches) |
|
Fuel capacity
|
7.99 litres (2.11 US gallons) |
|
Other specifications |
|
Color options
|
White |
|
Starter
|
Electric & kick |
