| Pitster Pro's profilation of this bike |

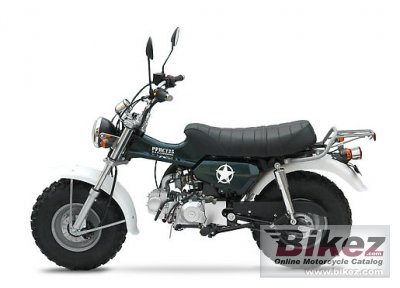

| Soft sand, rocky trails or deep ruts it doesnīt matter cause the Sherpa 125 isnīt scared of any terrain. The over-sized tires, extended frame and heavy duty suspension makes the Sherpa 125 easy to get up and over any obstacle in your path and with a low center of gravity the Sherpa 125 is very rider friendly for all ages and skill level. |
| General information |
|---|
| Model: | Pitster Pro Sherpa 125 |
| Year: | 2012 |
| Category: | Allround |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Price as new (MSRP): | US$ 1699. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 124.00 ccm (7.57 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 9.0:1 |
| Bore x stroke: | 52.4 x 57.0 mm (2.1 x 2.2 inches) |
| Fuel system: | Carburettor |
| Fuel control: | Single Overhead Cams (SOHC) |
| Ignition: | Stator/ CDI with lighting coil |
| Cooling system: | Air |
| Gearbox: | 4-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Multi Plate Wet Clutch |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Telescoping Fork |
| Front wheel travel: | 102 mm (4.0 inches) |
| Rear suspension: | Spring and Oil Dual Shock Swingarm |
| Rear wheel travel: | 102 mm (4.0 inches) |
| Front tyre: | 21/7-10 |
| Rear tyre: | 21/7-10 |
| Front brakes: | Single disc. Hydraulic |
| Front brakes diameter: | 155 mm (6.1 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight: | 93.0 kg (205.0 pounds) |
| Seat height: | 737 mm (29.0 inches) If adjustable, lowest setting. |
| Overall length: | 1,880 mm (74.0 inches) |
| Overall width: | 864 mm (34.0 inches) |
| Ground clearance: | 203 mm (8.0 inches) |
| Wheelbase: | 1,219 mm (48.0 inches) |
| Fuel capacity: | 3.80 litres (1.00 gallons) |
| Other specifications |
|---|
| Color options: | Forest Green and Black |
| Starter: | Electric & kick |
