Pitster Pro MX 110R 20122012 Pitster Pro MX 110R specifications, pictures, reviews and rating |

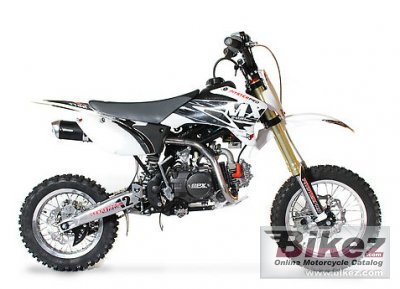

 2012 Pitster Pro MX 110R. Picture credits - Pitster Pro. Submit more pictures. |
|
| General information | |
|---|---|
| Model | Pitster Pro MX 110R |
| Year | 2012 |
| Category | Minibike, cross |
| Price as new | US$ 1999. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 110.0 ccm (6.71 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 9.2:1 |
| Bore x stroke | 52.5 x 49.5 mm (2.1 x 1.9 inches) |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Stator/ CDI with lighting coil |
| Cooling system | Air |
| Gearbox | 4-speed |
| Transmission type | Chain (final drive) |
| Clutch | 5 plate wet clutch |
| Exhaust system | FMF Factory 4.1 |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central Double Cradle Chromo W/ Tri Point Mounting, removable footpeg Design, Progressive Link |
| Front suspension | GPX Moto forks w/ Separate Comp and Reb Adjustment |
| Rear suspension | Pitster Progressive Link Swingarm w/ Comp. and Rebound Adjustment, Adjustable Spring Preload |
| Front tire | 2.75-14 |
| Rear tire | 1.85-12 |
| Front brakes | Single disc. W-Style Rotor W/ Floating Caliper |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Single disc. W-Style Rotor W/ Floating Caliper |
| Diameter | 190 mm (7.5 inches) |
| Wheels | Standard |
| Physical measures and capacities | |
| Dry weight | 64.9 kg (143.0 pounds) |
| Ground clearance | 254 mm (10.0 inches) |
| Wheelbase | 1161 mm (45.7 inches) |
| Fuel capacity | 3.80 litres (1.00 US gallons) |
| Other specifications | |
| Color options | White |
| Starter | Electric & kick |
