| Pitster Pro's profilation of this bike |
| Smooth styling and the sleek design of the Mini Monster 125 gives this mini some serious curb appeal. The throwback looks mixed with new school 4-Stroke power make it easy to understand why the Mini Monster is such a great bike to have in the garage. |
| General information |
|---|

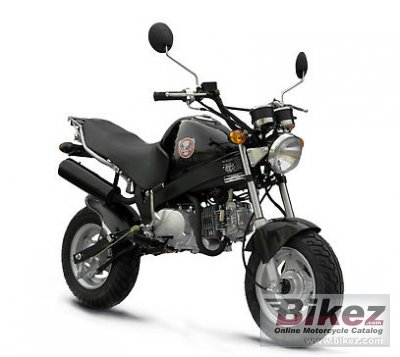

| Model: | Pitster Pro Mini Monster 125 |
| Year: | 2012 |
| Category: | Allround |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Price as new (MSRP): | US$ 1749. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 124.00 ccm (7.57 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 9.0:1 |
| Bore x stroke: | 52.4 x 57.0 mm (2.1 x 2.2 inches) |
| Fuel system: | Carburettor |
| Fuel control: | Single Overhead Cams (SOHC) |
| Ignition: | Stator/ CDI with lighting coil |
| Cooling system: | Air |
| Gearbox: | 4-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Multi Plate Wet Clutch |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel |
| Front suspension: | Conventional Telescoping Fork |
| Front wheel travel: | 165 mm (6.5 inches) |
| Rear suspension: | Spring and Oil Dual Shock Swingarm |
| Rear wheel travel: | 124 mm (4.9 inches) |
| Front tyre: | 100/90-10 |
| Rear tyre: | 120/90-10 |
| Front brakes: | Single disc |
| Front brakes diameter: | 155 mm (6.1 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight: | 72.6 kg (160.0 pounds) |
| Seat height: | 686 mm (27.0 inches) If adjustable, lowest setting. |
| Overall length: | 1,514 mm (59.6 inches) |
| Overall width: | 711 mm (28.0 inches) |
| Ground clearance: | 290 mm (11.4 inches) |
| Wheelbase: | 1,064 mm (41.9 inches) |
| Fuel capacity: | 7.00 litres (1.85 gallons) |
| Other specifications |
|---|
| Color options: | Black |
| Starter: | Electric & kick |
