| Pitster Pro's profilation of this bike |
| The ultimate play bike is here! Leave no stone unturned and no trail unridden with the LXT. This bike is a trail version of the LXR, featuring a powerful headlight and tail light to guide your way home. |
|
General information |
|
Model
|

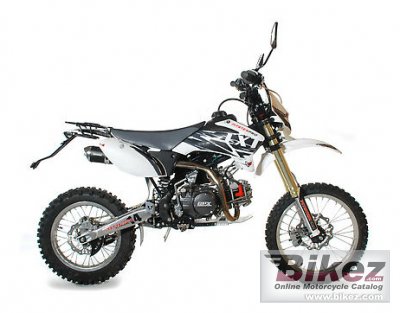

Pitster Pro LXT 160 R Fourteen |
|
Year of manufacture
|
2012 |
|
Type
|
Enduro / offroad |
| Price as new | US$ 2649. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
160.0 ccm (9.76 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
10.2:1 |
|
Bore x stroke
|
57.0 x 60.0 mm (2.2 x 2.4 inches) |
|
Fuel system
|
Carburettor |
|
Ignition
|
CDI |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Hand clutch |
|
Exhaust system
|
Exclusive Pitster Pro FMF Pipe For Perfect Fit |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central Double Cradle Chromo W/ Tri Point Mounting, Removable Footpeg Bar Design, Progressive Link. Subframe: Chromo Removable W/ Integrated Grab Handle. |
|
Front suspension
|
GPX MOTO 8.5´ W/ Separate Comp and Reb Adjustment, Low-Friction Fork Seals. CNC Alloy Triple Clamps |
|
Rear suspension
|
Progressive Link 9.8´ W/ Comp and Reb Adjustment, Adjustable Spring Preload |
|
Front tire
|
2.75-17 |
|
Rear tire
|
2.75-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
190 mm (7.5 inches) |
|
Wheels
|
Alloy wheels |
|
Physical measures and capacities |
|
Dry weight
|
66.2 kg (146.0 pounds) |
|
Seat height
|
889 mm (35.0 inches) If adjustable, lowest setting. |
|
Ground clearance
|
279 mm (11.0 inches) |
|
Wheelbase
|
1245 mm (49.0 inches) |
|
Fuel capacity
|
1.00 litres (0.26 US gallons) |
|
Other specifications |
|
Color options
|
White |
|
Starter
|
Kick |
